OFFER
Custom LED Module Sample
We develop and produce custom LED modules according to your exact needs with speed and quality. Samples are produced in ISO certified facility with thorough quality inspections.
- Deliverables 20pcs of custom LED module samples and data sheet
- Price US $1,900 (Any design*)
- Lead Time Shipped in 3 weeks
- * Details
-
-
Any size up to 30,000mm2 (FR4) or 15,000mm2 (MCPCB)
- - Example) 560x40mm LED module = 22,400mm2
- - Extra charge of up to $500 may apply for PCBs larger than the above
- Max length 590mm
- Based on mid power LED
-
Any size up to 30,000mm2 (FR4) or 15,000mm2 (MCPCB)
Production Readiness
After the shipment of the samples, you can place production orders whenever you want.**
** Within 6 months after sample shipment. After 6 months period, additional set-up charge may apply to begin production.
ORDER PROCESS
Order Process of LED Samples
20pcs of samples shipped in 15 working days after receiving payment
Customer
- START
-
Day-2 Inquiry Information in inquiry form
- - PCB dimension
- - Desired lm and lm/W etc.
- Day-0 Payment Wire transfer
- PRODUCTION READY
Baelux
- START
-
Day-1 Confirmation
- Module design outline
- Expected performance
- Extra charge for large size
-
Day+15 * Shipment
- 20pcs of samples
- Data sheet
- PRODUCTION READY
* In working days (Shipped in about 3 calendar weeks after receiving payment)
EXAMPLE
LED Module Example

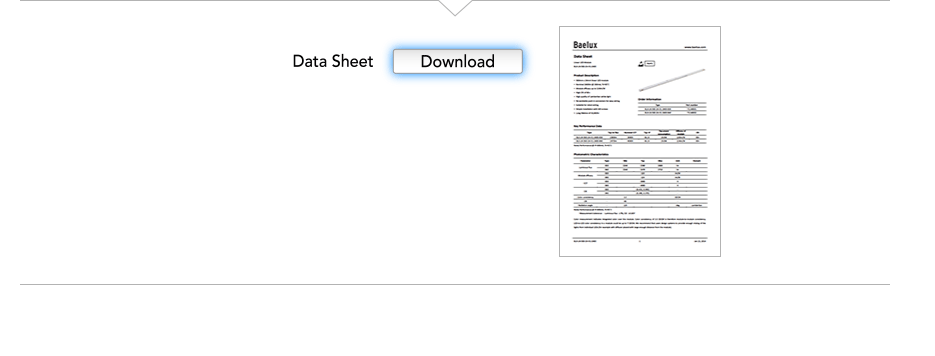

We develop and ship custom LED modules in 3 weeks. The following is an example module and its data sheet.

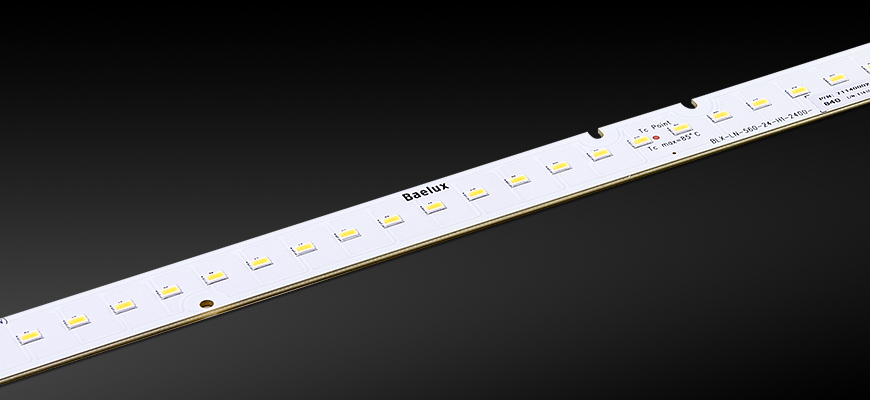

- LED Linear Module BLX-LN-560-24-H1-2400
-
- 2400lm 4000K/3000K (CRI 80+)
- 560mm x 24mm
- Typ. 300mA (Vf=66.1V, W=19.8W)
- Re-workable push-in connectors (AWG 18~24)
- 5 fixing holes for M3 screws
